Controls
Handlebars   Handlebar Clamps   Cruise Controls   Handgrips   Hand Levers
Shift Levers   Mirrors   Mirror Adapters   Cables



Handlebars

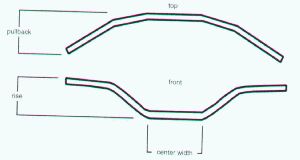

7/8" diameter, all are listed with Height, Pullback, and Width.



A.  Clip-on bars, Steel

35mm    #FMXS25-1090.... $65.00

C.  #10 Dirt track Bar, black, 4 1/2", 8", 34"

#FVLE61-6591 ..... $34.00

G. Drag style, 0", 3 1/2", 27 3/4"

#FVLE61-6560 ..... $26.00

H. Superbike style, 2 1/2", 5", 29"

#FVLE61-6561 ..... $30.00

J. Euro style, chrome, 3", 5 3/4", 30"

#FVLE61-6563..... $30.00

 K. Daytona Touring, 3", 7", 29 1/2"

#FVLE61-6564 ..... $30.00

***************************************

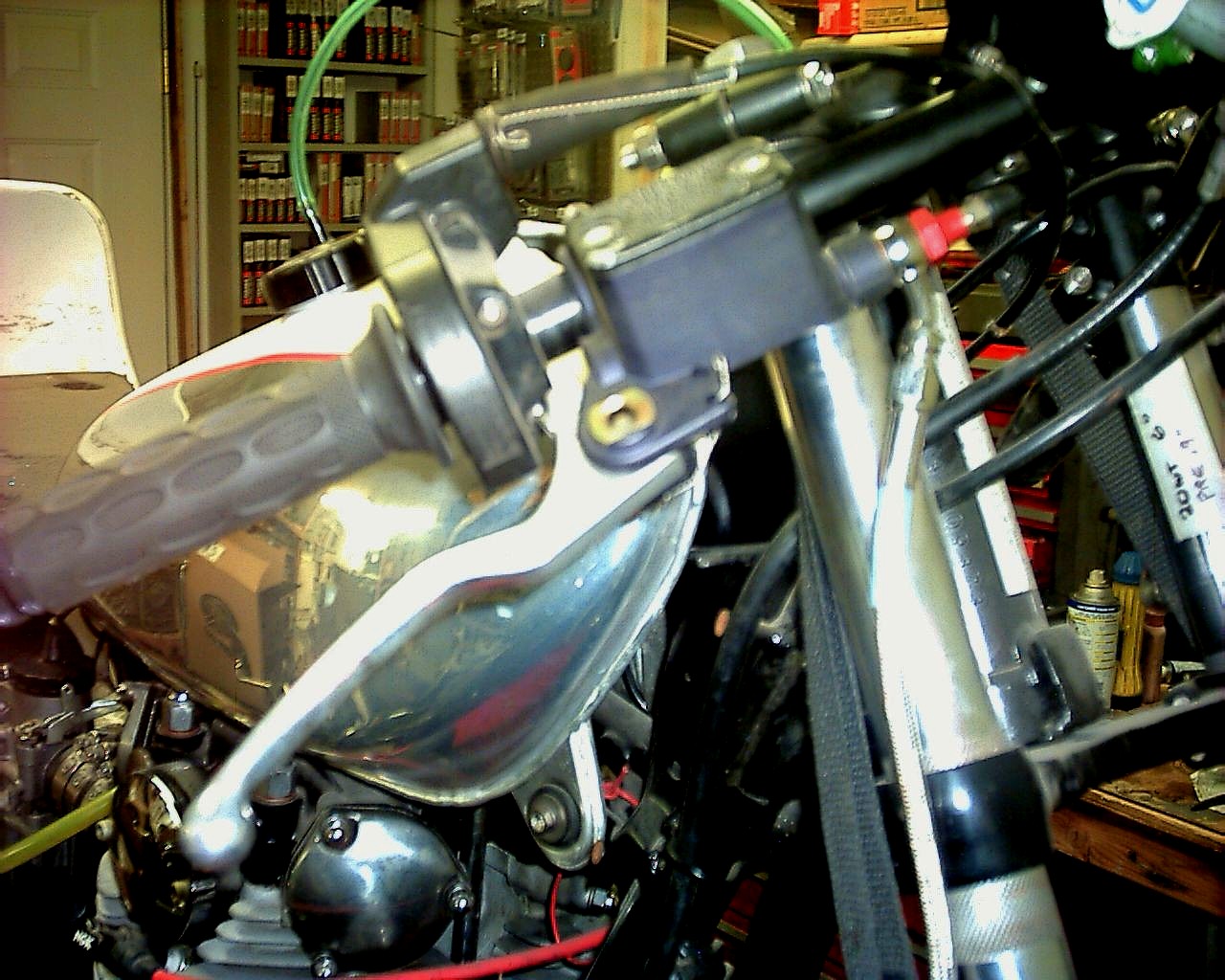

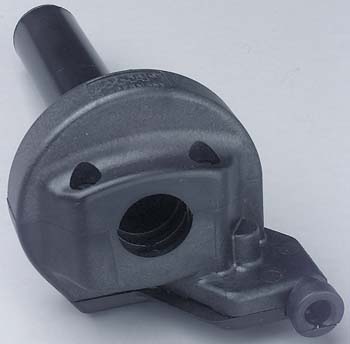

Magura 314 Straight Pull Throttle



                     This composite poly carbon throttle features a choice of 91˚ or 103˚ rotation with a pull of 48mm, less with smaller carbs. Weight is only 4.6 oz. Merc's Favorite!

#FMCS50-0106 ..... $38.50 ea.

Cable for '76-84 stock carbs std length (Pullbacks/DT).....# FCEN26-4700....$18.00

Cable for '76-84 stock carbs  -7" for (Euro/clubman)..........#FCEN26-4707.....$18.00

                  2-1 VM34 cable  -7" (Daytona or Euro)........................... #FCEN26-4310..... $41.00

                  2-1 VM34 cable  (Pullbacks or Western)..........................#FCEN26-4317......$41.00



Classic Chrome Barnett-style Throttle

A copy of the now-discontinued Amal-pattern classic Barnett 71TG single cable throttle, 7/8" bars

#FCVS-0461 ..... $18.95 ea.



A copy of the now-discontinued classic Barnett 71-1 DUAL cable throttle, 7/8" bars

#FJRC99-0351 ..... $21.00 ea.

*******************************************

Controls for 1" bars

A copy of the Amal-pattern classic Barnett 61TG single cable throttle, 1" bars, w/ grips

#FMAR10-0462.....$19.95 ea.

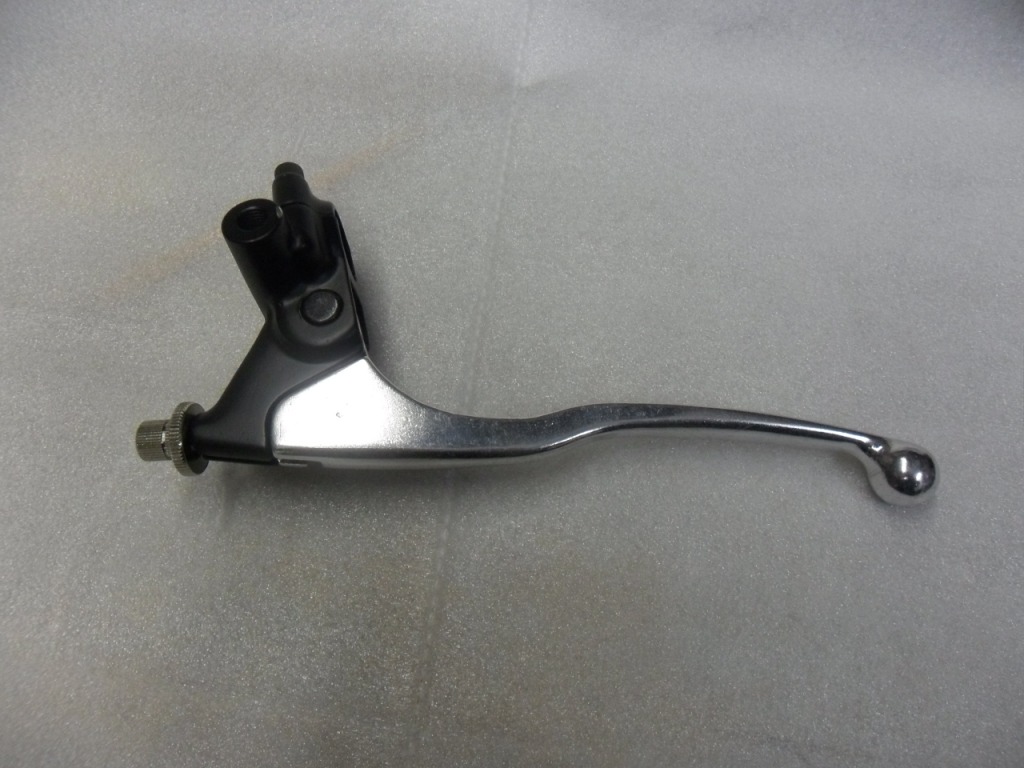

This polished dogleg clutch lever assy. for 1" bars works with stock and E-Z Pull clutch cables.

#FFLA10-1200....$29.95



This black 1/2"master cylinder for 1" bars works with stock stock XS levers and is suitable for early and late systems. With brake light switch and 10mm mirror mount.

#BCEN15-1010....$125.00

*************************************

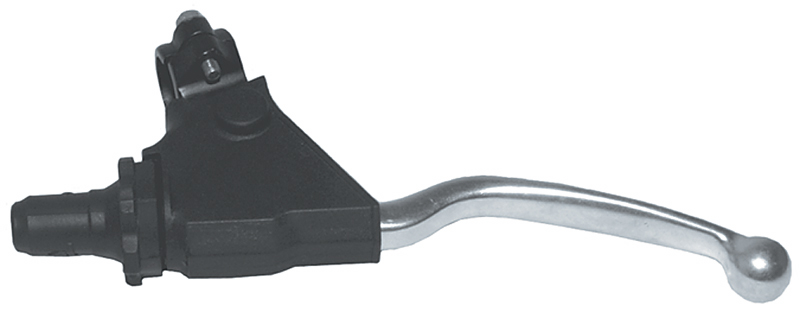

YZ-Style Clutch Lever Assembly


Quick adjust lever assembly comes with lever cover and can be adjusted with one hand while riding.  It has a high leverage ratio and brass pivot bearing for an easy pull.
No mirror mount. Sweet! Merc's Favorite!

   #FMCS86-6989 ..... $22.00  BACK in stock!

GRIPS

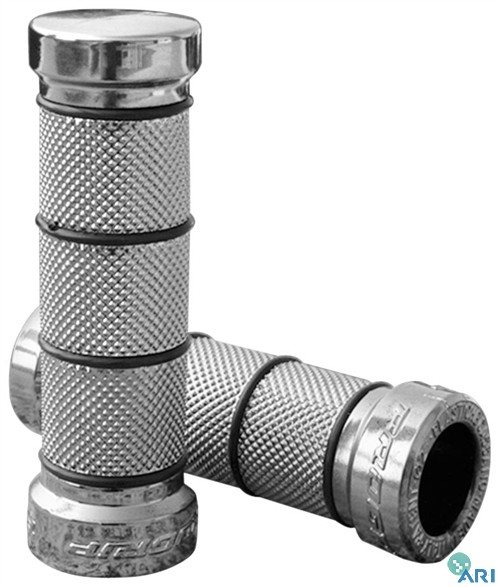

PRO-GRIP CHROME RUBBER Grips

The look of chrome with the comfort of rubber

Custom anodized billet look on soft rubber

Cuts up to 80% of handlebar vibration over metal grips

High weather resistance

 866 #FVLE19-7132..... $36.95/pr

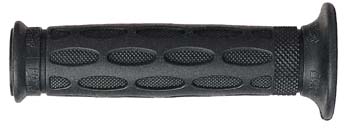

PRO-GRIP Gel Grips

Use these Gomma Grips to reduce fatigue. Sold as a pair

 7/8" x 125mm long with bar end caps.
Merc's Favorite!

713

 713 #FVLE19-7132..... $10.95/pr

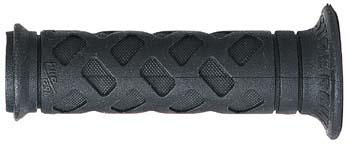

699 Gel Grips. Sold as a pair.
 7/8" x 125mm long with bar end caps

699 #FVLE19-6992..... $10.95/pr



*************************************


Closed cell foam grips to help absorb vibration, fits  7/8" bars. Sold as a pair

#FMCS86-4137 ..... $7.75



*********************************************

Levers

Front Brake  Levers

Polish '70-71 drum                     #FMCS86-4120....$6.00

Polish '72-76 disc                      #FMCS86-4325....$6.00

Black dogleg w/finger ridges  '77-84    #FMCS86-4324....$6.00

Polish dogleg w/finger ridges  '72-84   #FDIX28-0059.......$8.00



Clutch Levers
Polish '70-76
#FMCS86-4110....$7.00

Black w/finger ridges  '78-84   #FMCS86-4335....$7.00

Shorter polish dogleg  '70-84. Pretty good match for Brembo MC   #FMAR80-3250...$9.00

E-Z Pull Black w/finger ridges  '78-84   #FCEN83-9121....$19.95

Improved leverage. Not for use with dragging clutches.



************************************

Quality Control Cables

                    Clutch Cables

650 Central E-Z Pull Clutch Cable
  Using an over-sized, nylon-lined housing, and a slinky 7x7 wound inner, this cable has sufficient free length to allow a proper leverage ratio at the push screw. Others don't. Also eliminates the friction-causing metal elbow.
1974-84. Black. For use with stock perches or our YZ lever assembly. The perches from Mikes XS are shorter and you'll have excessive free play.

Pullbacks, Tracker bars        E-Z Pull 53 1/4" #FCEN26-3350......$19.95 ea.

Daytona,  Euro, & shorter      E-Z Pull 46 1/4" #FCEN26-3351......$19.95 ea.

Hi Bar, 15" Ape Hangers    E-Z Pull 61" #FCEN26-3352....$19.95 ea.

Standard Clutch Cables

Clutch Cable, '70-73, Standard, Silver  #FMXS51-6501.... $13.55

Clutch Cable, '74-79 Standard. Outer housing 50 1/4" long, Black  #FMXS51-6502.... $13.55

Clutch Cable, '78-84 Special.   Outer housing 52 1/2" long, Black  #FMXS51-3504.... $13.55



************************************************

Throttle Cables

 Single (pull) Throttle cable '78-84 w/ Pullback bars. Black elbow/adjuster. #FMCS50-05012....$13.55

Single (pull) Throttle cable '78-84 w/ Standard bars. #FMXS51-3511....$13.55

Single (pull) Throttle cable '78-84 w/ Clip-ons/Clubman. Route cable behind fork tube for Daytona/Euro

#FCEN26-4400....$16.00

Magura 314 cable for '76-84 stock carbs std length pullbacks/DT    # FCEN26-4700....$18.00

Magura 314 cable for '76-84 stock carbs  -7" for Euro/clubman        #FCEN26-4700.....$18.00





              VM34 Round Slide Throttle Cable

2-1 to fit stock throttles

  Throttle Cable for stock throttle, -7" (Daytona or Euro)  #FCEN26-4200..... $44.00

  Throttle Cable for stock throttle (Pullbacks or Western) #FCEN26-4100......$44.00

2-1 to fit Magura 314 throttles

   Throttle Cable -7" (Daytona or Euro) ..........#FCEN26-4310..... $41.00

   Throttle Cable STD. (Pullbacks or Western) #FCEN26-4317....$41.00



****************************************************

Speedometer cable '74-84

#FMAR11-1937......$15.00

Speedometer cable '70-73

#FMXS51-6500......$13.55

Tachometer cable '74-84

#FMXS51-3402...$13.55

*****************************************************

Gearshift Lever
All years

 #FMXS19-0072..... $14.75

*****************************************************

Mirrors


"Special" Mirror

"Special" style rectangular, replacement for OEM, chrome.
Right Hand (with 10mm left hand threads)

#DMAR42-4430 ..... $20.95

Left Hand (with 10mm right hand threads)

#DMAR42-4440 ..... $20.95

Classic Cruiser Mirror

Classic style, high polished chrome, extra
heavy construction. Universal stem fits right or left side.
Yamaha Reverse Right Hand (with 10mm left hand threads)

#DMAR86-8310 ..... $26.95

10mm Universal Stem (with 10mm right hand threads)

#DMAR86-8320 ..... $26.95



Classic Bar-End Mirror

 Fits left or right.

Chrome  #DMAR34-0000.... $17.95 ea

Black   #DMAR34-0100....... $17.95 ea.


Reverse Thread Mirror Adapter
RH unit adapts Yamaha reverse right hand mount. Can be used with epoxy or liquid steel to repair stripped threads. Sold in pairs

#DMXS16-3001..... $5.95/pr
