CHASSIS
 Fork Springs  Rear Shocks/Springs   Fork Wipers
Fork Braces   Fork Seals   Steering Head Bearings   Swingarm Bushings

FRONT FORKS



"Progressive Suspension" Early Model Fork Springs
Improves handling and retains OEM geometry.
For the 72-76 with 34mm diameter fork tubes.
These are a 30/40 lb. Recommended upgrade for stock bikes. Sold in pairs only.

#DVLE44-1115M..... $102.00

"Progressive Suspension" Late Model Fork Springs
Improves handling and retains OEM geometry.
For the
77-83 with 35mm diameter fork tubes.
These are a 25/35 lb. Recommended upgrade for stock bikes. Sold in pairs only.

#DVLE44-1119..... $97.00

"Progressive Suspension" Heavy Duty Late Model Fork Springs
Improves handling and front end dive. Longer rear shocks and HD rear springs required
For the 77-83 with 35mm diameter fork tubes.
These are 35/50 lb. They will accentuate the stock rear weight bias without longer rear shocks and HD rear springs. Sold in pairs only.

#DVLE44-1125..... $97.00

 *******************************

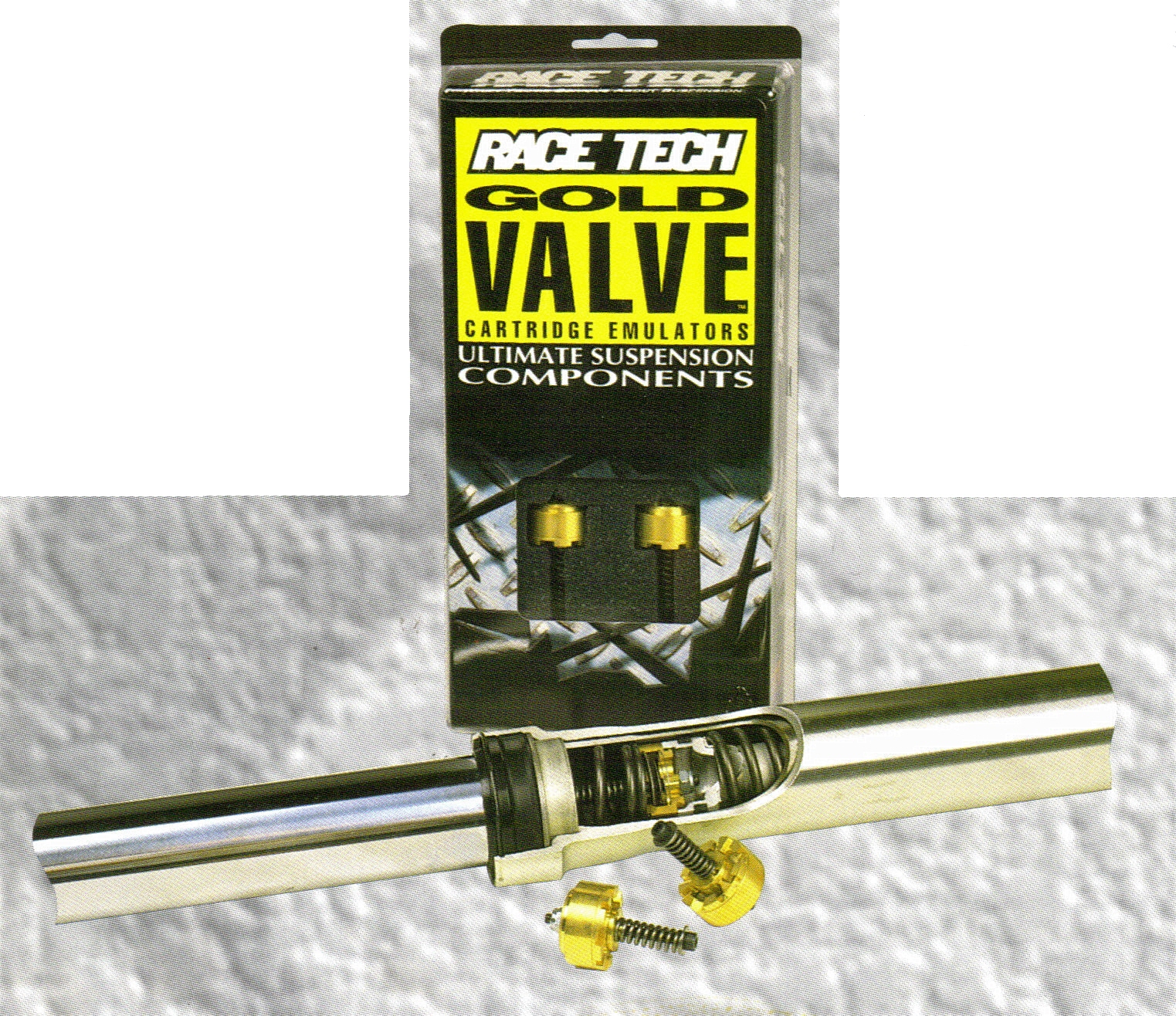

Race Tech Gold Valve Emulators

"The Gold Valve completely transformed our YZ600F test bike's front end. The results were amazing."

                                                                               -Motorcyclist, September 1994




Improves handling by emulating cartridge fork performance. Adjustable compression damping with blow off capability. The single best modification for damper rod forks!
 77-83 with 35mm diameter fork tubes.
Damper rod drilling required

#DRTI-S3001 ..... $169.95

***************************************

Fork Gaiters


If you like the classic look, these quality gaiters are for you! These long-lasting
polyurethane gaiters fit 34mm and 35mm forks without adaptors, for '71-84 models.

#DCEN23-14451 ..... $20.00 per set



OEM Fork Wiper Boot Kit 35mm


Each kit includes (2) 35mm wiper boots
for the 77-84 models. These have OEM lasting qualities.

#DCEN23-14450 ..... $46.00 per set

OEM Fork Wiper Boot Kit 34mm


Each kit includes (2) 34mm wiper boots, but do not have the ridges for the 71-76 models.
Chrome covers for XS1B/2 TX650 will not fit. These have OEM lasting qualities.

#DCEN23-14452 ..... $46.00 per set



Fork Wiper Boot Kit


Each kit includes (2) 35mm wiper boots
for the 77-84 models

 #DMXS27-1065 ..... $23.50 per set

Fork Wiper Boot Kit

Each kit includes (2) 34mm wiper boots
for the '71-76models

#DMXS27-1066 ..... $23.50 per set

Fork Seals

Elastomer Fork Seals

Patented Elastomer triple lip fork seals have half the "stiction "of stock seals for smoother fork action and up to 10X life.
          Balanced triple lip design evenly distributes pressure, reducing operating temperature, wear and friction.

'77-84  35mm  #DMAR55-1080..... $21.00 pair

 '70-76  34mm  #DMAR55-1330..... $21.00 pair

Standard Fork Seals

OEM Quality Fork  Seals for the following:
34mm fits: XS1,2, TX, XS650 '70-76          35mm fitsXS650 '77-84

34mm #DSUD51-61016..... $10.00 pair

35mm  #DMAR54-1020....... $10.00 pair

***************************************************



Tapered Roller Steering Stem Bearings w/seals

All Balls Steering Stem Bearing Kits update loose ball bearings with heavy duty taper bearing replacements. Kits come complete with both upper and lower taper bearing cups and cones and seals



#DMAR32-0040..... $44.00 pair

            Steering Stem Seal

                                        Replace your stem seal when replacing your steering bearings, or if damaged when removing old races. All years

#DCEN23-46200..... $6.00 each

**********************************************

REAR SHOCKS



Shorter, 11"  Long Replacement Rear Shocks

Replace worn rear shocks. 1.5" shorter than stock units.
Lowers the rear end. Chrome plated body, springs, & dust covers.
Sold in pairs only.

#DDIX32-1151  $99.95



"Progressive Suspension" Rear Shocks
Designed to be a stock  looking replacement shock.
Chromed shafts. Black finish on body. Sold in pairs.
Order springs separately.

13"...#DVLE44-1283....$139.95

12.5" #DVLE44-1282.... $139.95  Special Order

"Progressive Suspension" Rear Springs
Chrome and black finish.
*FYI: Spring rates are expressed as:
The force in Pounds required to compress the first
inch/The force in Pounds required to compress
the last inch of spring. Sold in pairs only.

70/100  rate #DVLE44-1451 ..... $77.95 chrome/ pair
80/120  rate #DVLE44-1452 ..... $77.95 chrome/ pair
90/130  rate #DVLE44-1453 ..... $77.95 chrome/ pair

100/140 rate #DVLE44-1454 ..... $77.95 chrome/ pair

"Progressive Suspension" Heavy Duty Gas Magnum Rear Shocks
Thicker body with straight rate springs available. More travel than 14 series.
Offset lower mounts. Chromed shafts. Black finish on body. Sold in pairs.
Order springs separately. Spring installation upon request w/o dust covers.


11.5"   #DVLE44-1215..... $204.95/pair (Brat bike) Special springs required

90/130   rate #DVLE44-1370 ......$76.95 black/pair (Brat bike only)
90/130   rate #DVLE44-1470 ...... $92.95 chrome/pair
(Brat bike only)
115/155   rate #DVLE-1375...........$92.95 chrome pair
(Brat bike only)

>>>>>>>>>>>>>>>>>>>>>>

13"   #DVLE44-1202 ..... $204.95/pair Special Order

13.5" #DVLE44-1203 ..... $204.95/pair

14.25" #DVLE44-1206 ..... $204.95/pair-must protect swing arm.

NOTE: Longer shocks will put more weight on the front end, improving feel and handling.

"Progressive Suspension" Rear Springs
for Gas Magnums
*FYI: Spring rates are expressed as:
The force in Pounds required to compress the first
inch/The force in Pounds required to compress
the last inch of spring. Sold in pairs only.


75/120   rate #DVLE44-1394 ..... $76.95 black/ pair

    75/120   rate #DVLE44-1494 ..... $92.95 chrome/ pair

90/130   rate #DVLE44-1367 ......$76.95 black/pair

    90/130   rate #DVLE44-1467 ..... $92.95 chrome/pair

                                                              105/150 rate #DVLE44-1368 ..... $76.95 black/pair

105/150 rate #DVLE44-1468 ..... $92.95 chrome/ pair
*110 rate #DVLE44-1391..... $76.95 black/ pair modified by 650Central
120 rate #DVLE-1392..... $76.95 black/ pair

**************************************


Solid Bronze Swing Arm Bushings

Remove the hinge from your XS650.
Lose that rear end wobble, replace those worn plastic bushings today.
Made to OEM specs of superior bearing brass, sold in pairs. All years

#DKPM80-0475..... $52.00


Swing Arm Seal Set

Sold in pairs.  All years

#DMXS28-1025..... $16.50

Pivot Shaft
 Threaded area is full shaft diameter. Stops breakage at the thread root. Nyloc nut included.

'74-84    #DMXS27-1067..... $28.95

'70-73    #DMXS27-1071.... $28.95

Pivot Shaft Tube
All years.

#DMXS27-1068..... $30.50

Wheel bearings and seals in stock - CALL

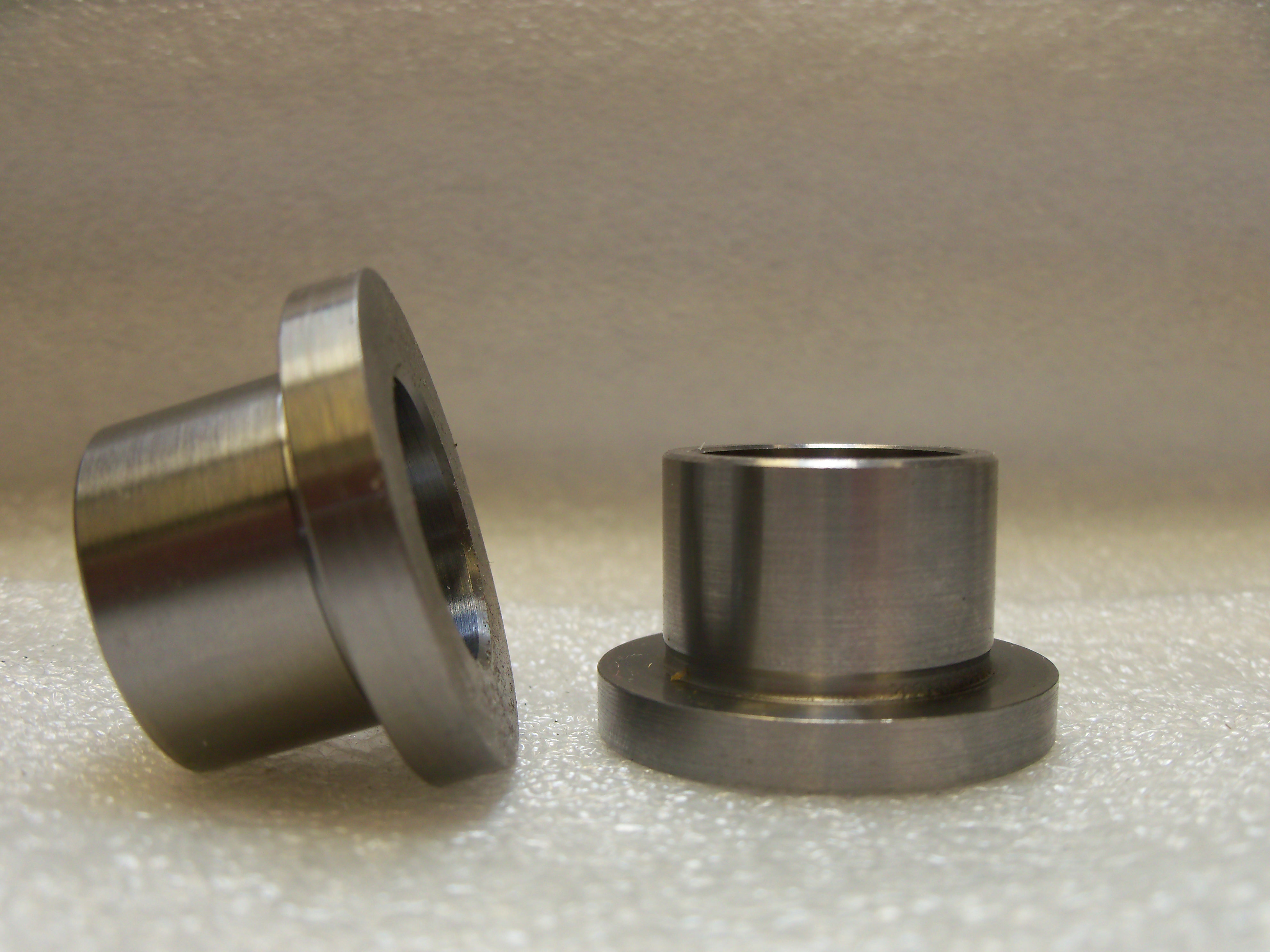

Rear Left Wheel Bearing Collar


No longer available from Yamaha, this shouldered collar fits in the left side
6305 bearing to reduce it to 20mm. It replaces part # 90387-20166-00
 All years.

#DCEN90-38720..... $26.00
