Mikuni
VM34mm Round Slide Carb Kit
Here's what you will get:
(2) VM34 Round slide carbs, left and right, jetted by 650 Central. Right carb has a pull up choke.
(2) Heavy Duty Carb Manifolds, modified for proper fit, SS mounting hardware
(2) Uni Pod Air Filters (not shown), XS pods, or K&Ns
Now with vacuum barbs installed! for accurate sync'ing and vacuum petcocks
(1) Throttle Cable for stock throttle (Pullbacks or Western)
OPTION: (1) Throttle Cable for stock throttle or Magura 314 (Daytona or Euro, -7")
(1) K&N-style breather filter
"Bumbler's Guide to Jetting"
Carb log
FREE TECHNICAL ASSISTANCE
TECHNICAL ASSISTANCE for "Pre-jetted" carbs bought elsewhere -$25.00
36mm and 38mm kits available.....CALL
VM34 kit w/ UNIs & Stock cable #CCEN14-10134-S... $432.00
VM34 kit w/ UNIs & short cable #CCEN14-10134-7... $432.00
VM34 kit w/ XS pods & Stock cable #CCEN14-10134M-S... $460.00
VM34 kit w/ XS pods & short cable #CCEN14-10134M-7... $460.00
VM34 kit w/K&N & Stock cable #CCEN14-10134K-S... $509.00
VM34 kit w/K&N & short cable #CCEN14-10134K-7... $509.00
VM30-34
rebuild kit .....................#CCEN14-1430............. $24.95
Substitute
Hi-Vo A-R aluminum racing manifolds to any 34mm kit, add $70
Substitute Magura 314 cable, stock or -7"................... No charge
Substitute Velocity Stacks................... No charge
"The bitterness of poor performance remains long after the sweetness of low price is forgotten"

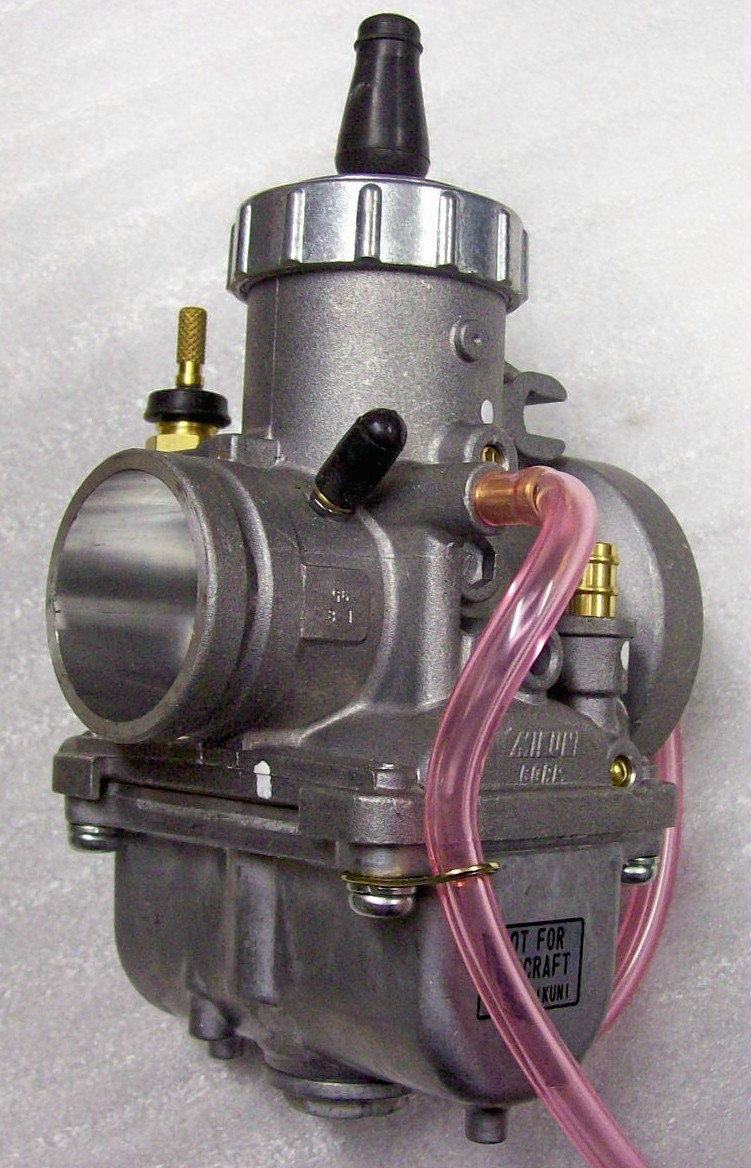

Now Glue-in barbs and caps!
3/16" Glue-in barbs & caps #CCEN13-1620..... $10.00 /pair
Aluminum Racing Velocity Stacks
Aluminum velocity stacks to fit Mikuni VM30-34mm and VM36-38mm
THESE DO NOT FIT STOCK BS CARBS
VM30-34mm #CMAR11-1420 ..... $16.95 Sold Each
VM36-38mm #CMAR11-1421 ..... $16.95 Sold Each
Hex Jet Wrench
For Mikuni VM & Keihin carburetors. Makes changing VM main jets a snap!
#TCEN99-2000... $3.95 ea.
Light Return Springs
Standard return springs a pain in the wrist? These fit 30-34mm VM Mikunis and offer a substantially easier pull. Sold each, order 2.
#CCEN14-13100 ..... $3.75 ea.

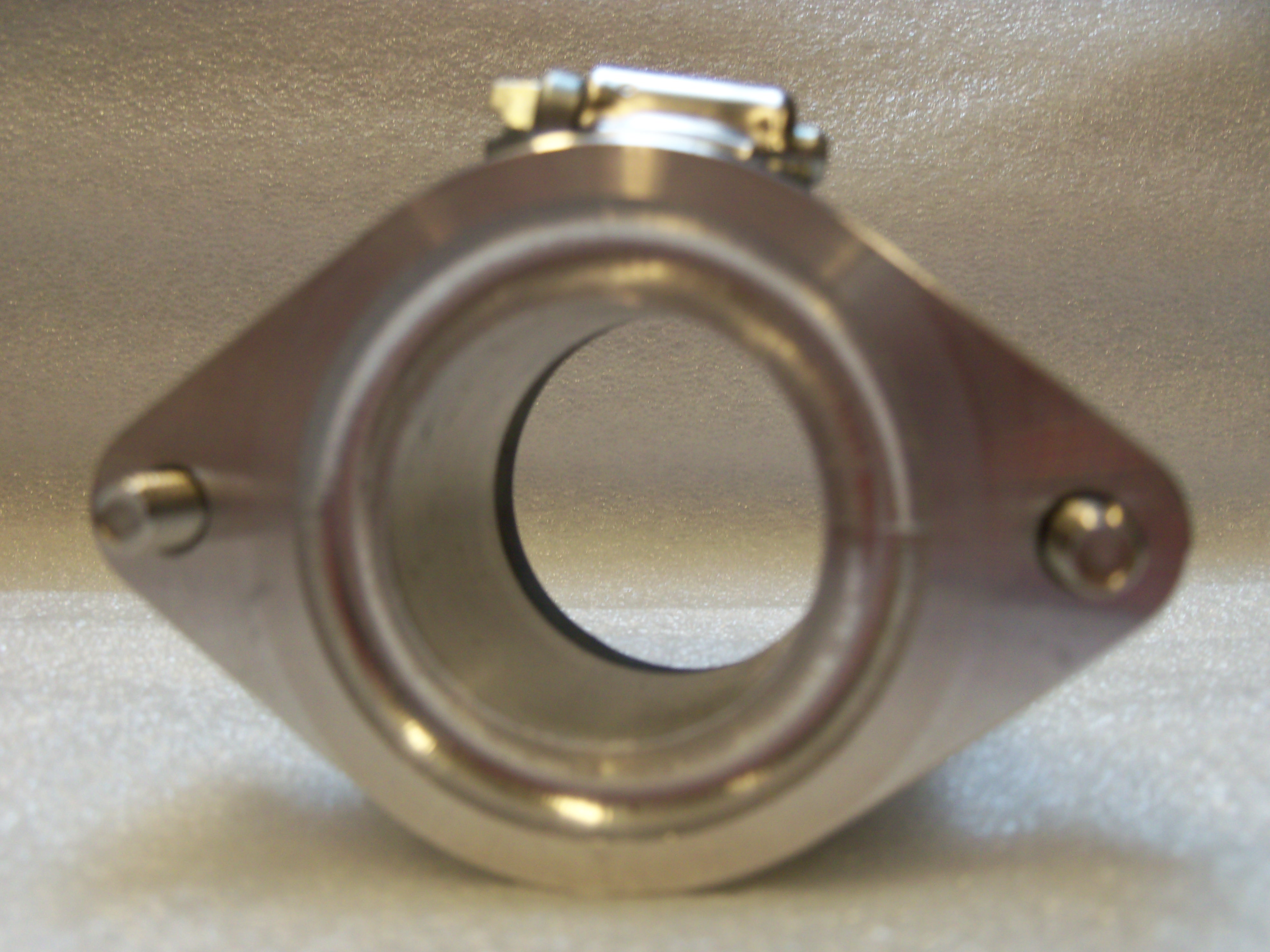

Heavy Duty 34mm Mikuni Manifolds
For those of you unfortunate enough to have purchased your 34mm carb kits from others, 650 Central offers the Heavy Duty 34mm Mikuni manifolds, properly modified for the XS650.These are designed to be used without the support of an air box. Stainless Steel mounting hardware included. Sold by the pair. Heavy Duty 36-38mm versions now available.
30-34mm #CCEN13-555MM2..... $69.00/pr.
36-38mm #CCEN13-556MM2 ..... $75.00/pr.
Pull Up Choke
Finding that pesky lever choke on the right hand VM annoying? This pull up conversion makes life easier.
#CSUDmi002.352 ..... $24.32 ea.

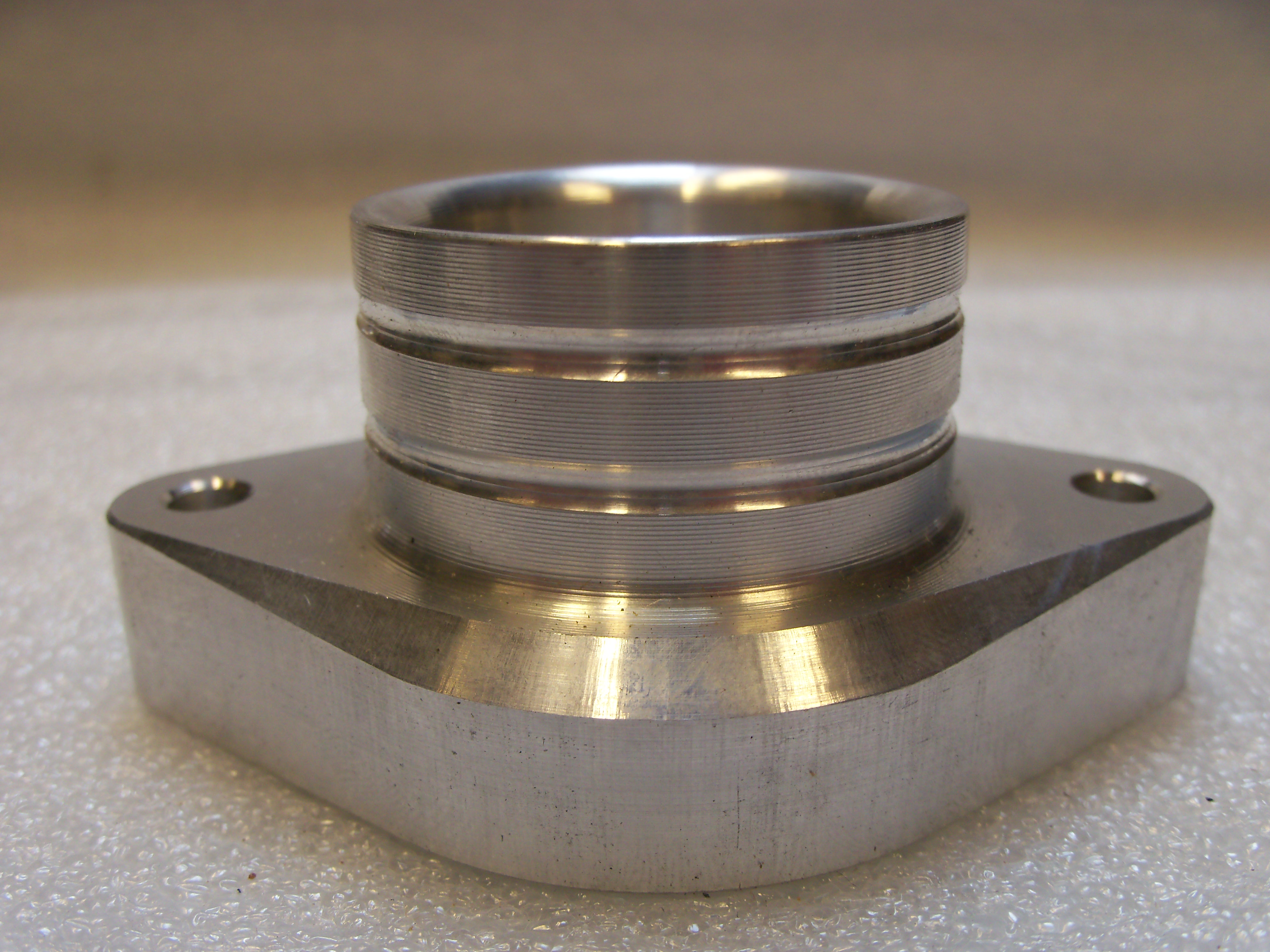

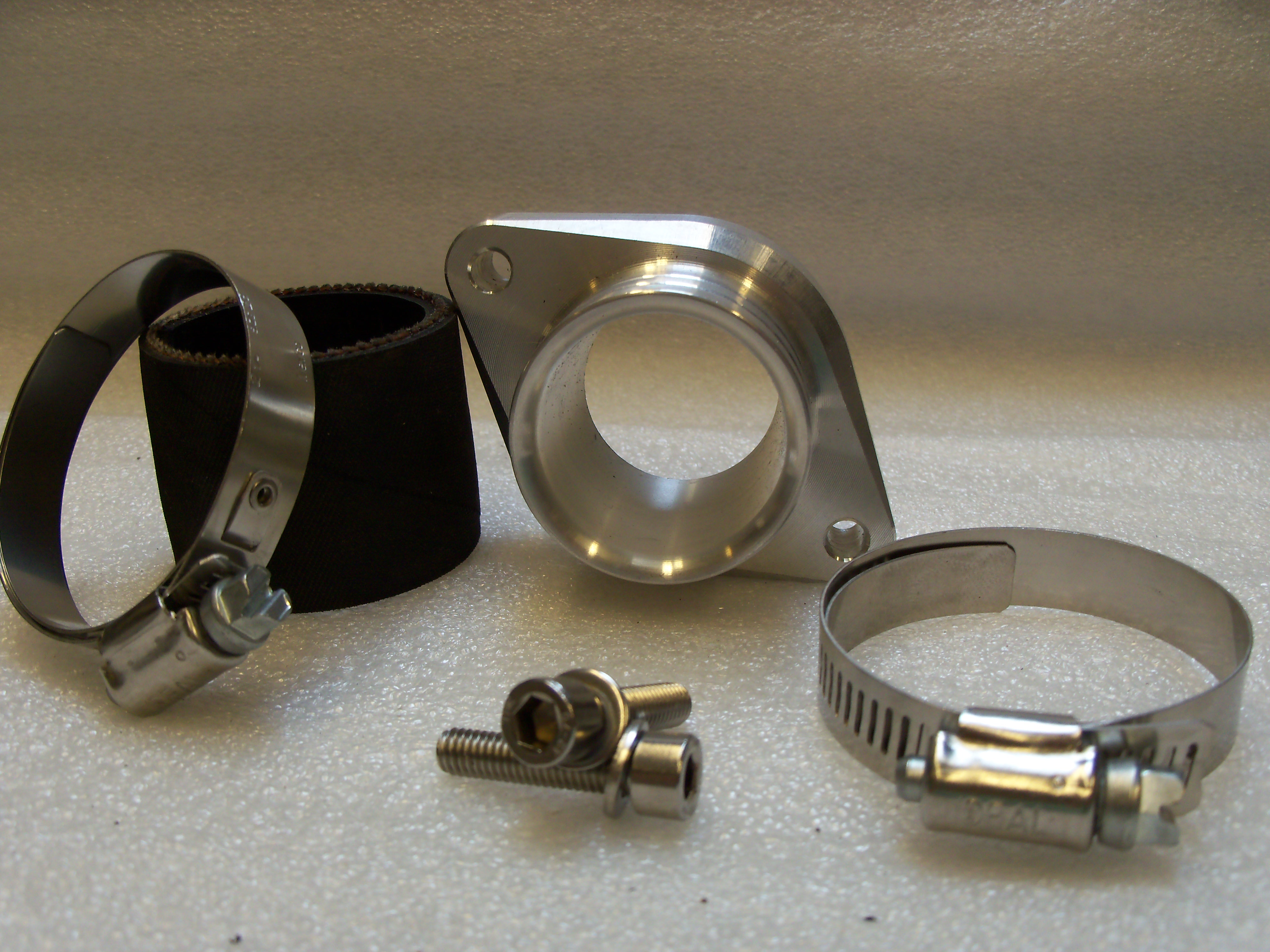

VM Aluminum Racing Intake Manifolds
These move the carbs back 1 3/4 " inches for ram effect. New HiVo A-R manifolds have thicker, heavy duty flanges with Anti-Reversion Trap. Radiused inlet & taper-bored for Hi-Velocity. Lined hose clamps, gaskets and SS hardware included. Available in 34mm & 36mm ONLY--for now. Not for stock carbs.
HiVo
A-R 34mm #CCEN13-55534 ..... $62.50 Sold Each
HiVo
A-R 36mm #CCEN13-55536 ..... $62.50 Sold Each
Carb
Boot Gaskets
XS650 1970 - 1984
#KCEN18-0865 ........ $6.50/pr.

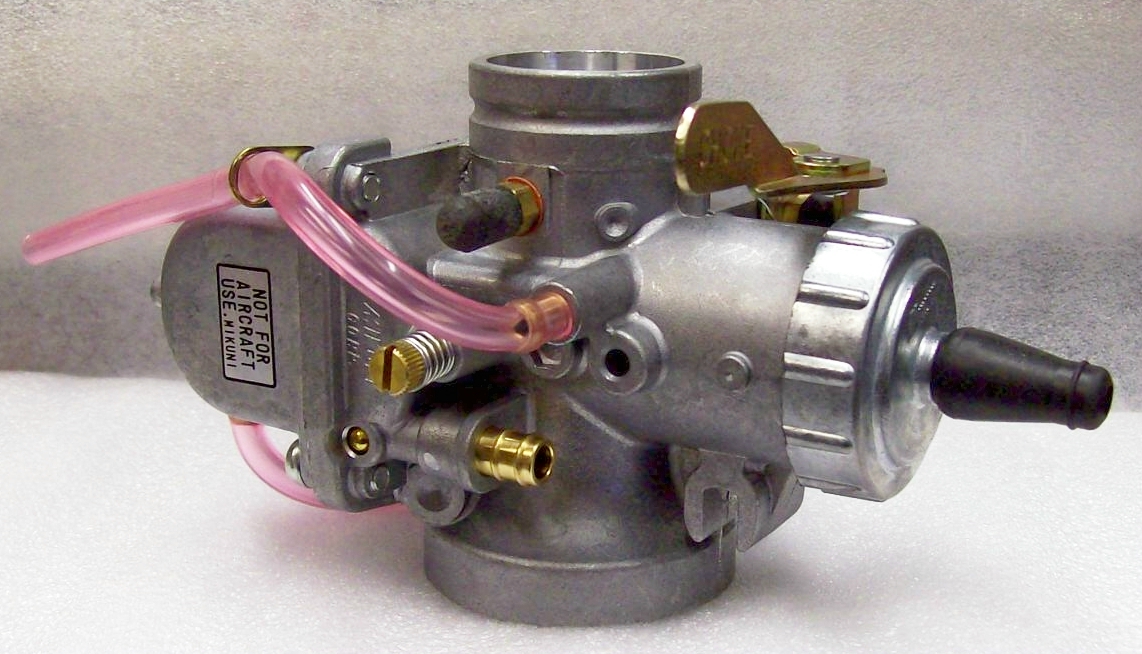

Carb Barbs
I
Barb installation in '70-74 OEM BS38s
Install on your VMs or others for carb synching or vacuum petcocks. Taps required. 6mm will replace blanking plugs on OEM '76-79 BS38 CVs
5mm 5x.8 #19 drill #CMCS50-08218 ..... $8.95 Sold Each
6mm 6x1.0 #9 drill #CMCS50-08219 ..... $8.95 Sold Each
Now Glue-in barbs and caps!
3/16" Glue-in barbs & caps #CCEN13-1620 ..... $10.00 /pair
VM34 Round Slide Throttle Cable
2-1 to fit stock throttles
Throttle Cable for stock throttle, -7" (Daytona or Euro) #FCEN26-4200......$44.00
Throttle Cable for stock throttle (Pullbacks or Western) #FCEN26-4100......$44.00
TYGON
FUEL LINE
TYGON fuel line the the highest quality available. Resistant to sunlight, hardening, cracking, and kinking. Flexible from --35˚ F to +165˚F.
Black or Clear
Clear 1/4" #CSUDmi009-041...... $5.25 /ft.
Black 1/4" #CSUDmi009-042...... $5.25 /ft.
Motion Pro Petcock
This clean little
petcock has 1/4" pipe threads & a 1/4" barb.
For Paughco and aftermarket tanks. Not for use with stock tanks.
1/4" MP petcock #CTKR15-0997 ....... $20.00 ea.
90º Petcock
This clean little
petcock has 1/4" pipe threads & a 1/4" barb.
For Paughco and aftermarket tanks. Not for use with stock tanks.
1/4" 90º petcock #CTMA15-2356 ....... $20.00 ea.
BRASS FUEL "T" FITTING
A quality fuel "T", made of brass 1/4"
#CSUDmi009.100..... $7.50 ea.
Inline Fuel Filters
An inexpensive way to protect your
nice clean carbs is with these
inline porous bronze element fuel filters. 75 micron.
About 1" long, they fit standard XS650 fuel line.
#MKNL19-1270..... $3.95
Inline 90º Fuel Filters
A 90º version of the above model can
ease installation
issues. A porous bronze element provides 75 micron filtration.
About 1" long, they fit standard XS650 fuel line.
#MSUD00-9215..... $4.29
Inline Paper Fuel Filter
Paper elements offer the finest
filtering to protect your nice clean carbs.
Bulkier than the sintered element fuel filters above, but can be made to fit
80-84 below the carb tops.
About 1.75" long, they fit standard XS650 fuel line.
#MCEN25-4150..... $4.99
Fuel Tank Repair Kit
We have saved many fuel tanks with
Kreem.
When applied according to the instructions, it
seals leaks and puts an end to poor performance
due to plugged fuel filters and petcocks.
Each kit contains 3 bottles, one each of Prep
Solvent, Cleaner/Etcher and Sealer.
#EDIX38-0242 ..... $53.95
