Brakes


Front Pads     Rear Pads     Rear Shoes     Master Cylinder Kits
Caliper Pistons   Caliper Kits   Caliper Seal Kits


For your high performance brake needs click on logo



Brembo Rotor Kit w/ Sintered Pads '77-'84



"Then I added the Brembo brake upgrade from 650 Central. This has been the Most Dramatic change I have experienced on the XS! The Brakes are AWESOME! Two fingers are all you need for major stopping power! Lots of travel on the lever, for lots of feel on the brakes."  Mike Davis



With stock rotor --"OK - after over 100k miles on XSs, I finally have one with a real front brake.  I purchased a Brembo 11mm front master and a set of Vesrah sintered front pads from 650 Central.  Mike M was dead on in recommending this size master.  After a few normal stops and then a half dozen ton-down bedding stops, this thing works as well as the front on my W, almost as well as the Thruxton.  (almost) What a difference!   This takes the tires I am using to the limit easily.  It will take race rubber if I ever consider the rotor / caliper upgrade to match."  Mike Tatkow

This premium lightweight Brembo rotor offers a superior Co-efficient Of Friction to Japanese SS rotors. Weighing only 3 lbs., 6 oz., it has a noticeable effect on handling. Combined with the modified Vesrah Sintered pads, a vast increase in stopping power is immediately noticeable, upon heat cycling. Kit includes longer caliper mounting bolts, precision-machined CNC spacers, modified kit pads, and the Brembo rotor, with classic aluminum carrier, SS buttons, 5mm thick blade with peripheral cooling groove, 11mm Brembo master cylinder, w/ brake switch and SS lines for a complete kit with modern feel.

MUST USE KIT PADS

Brembo rotor kit w/ line & Brembo Master #BCEN20-1010..... $491.00

Brembo rotor/pad kit  only #BCEN20-1012..... $295.00

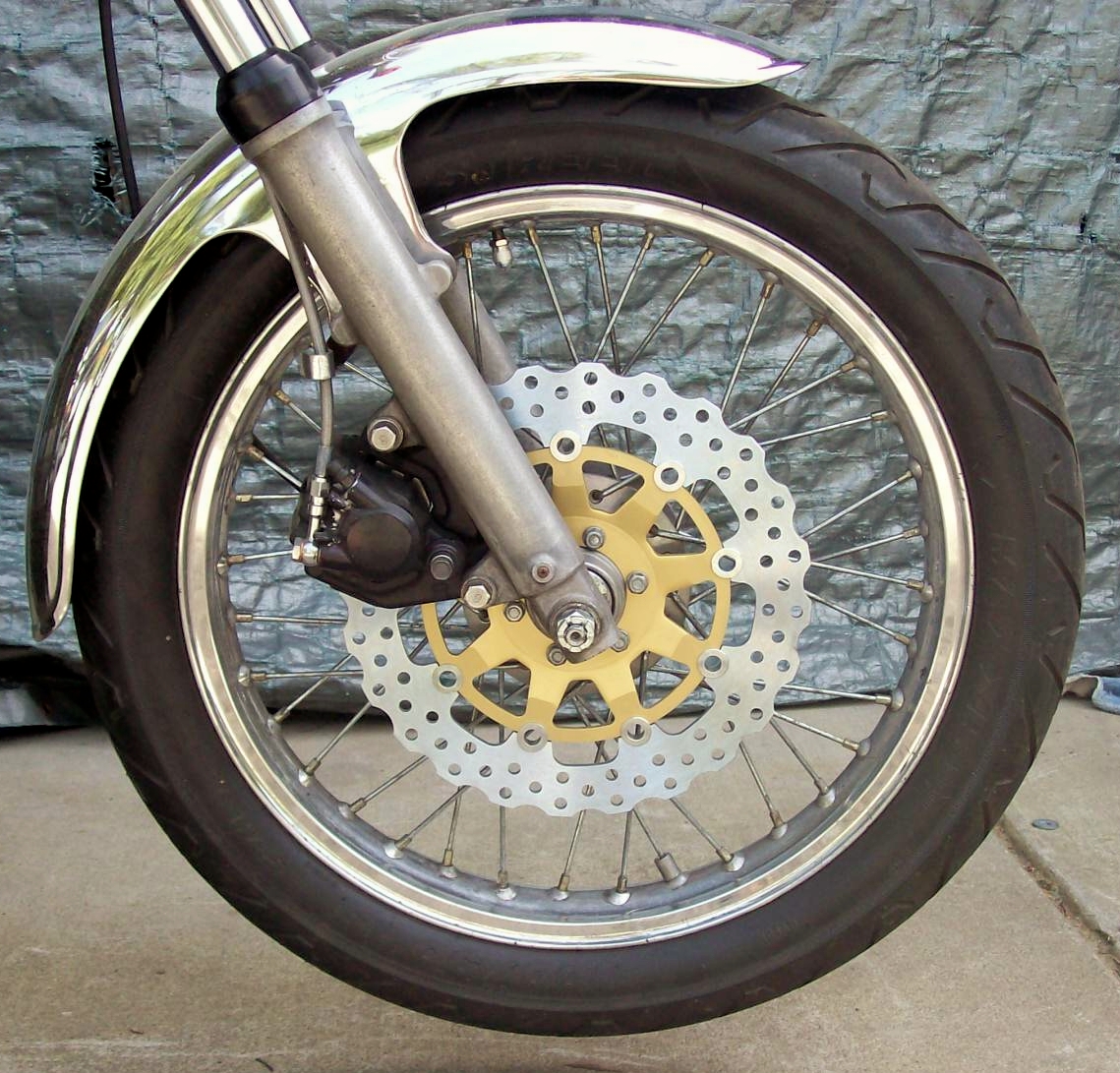

EBC Contour Rotor Kit w/ Organic Pads '77-'84



This EBC stainless steel rotor is made from a semi-hard German stainless steel. Weighing 2 lbs., 15 oz., it is the lightest available rotor. Combined with the Vesrah sintered pads, a large increase in stopping power is to be had, with the best feel available. Kit includes longer caliper mounting bolts, precision-machined CNC spacers, Vesrah sintered pads, and the EBC floating Contour rotor, with aluminum carrier, 5mm thick blade, 11mm Brembo master cylinder, w/ brake switch and SS lines w/ chrome banjo fittings for a complete kit with modern feel.

EBC rotor kit w/ line & Brembo Master #BCEN20-1020..... $465.00

EBC rotor kit/pad  only #BCEN20-1022..... $290.00

These EBC stainless steel rotors are made from a semi-hard German stainless steel. Weighing 4 lbs., 4 oz., front & 3 lbs., 4 oz. rear, these are standard replacement rotors. No spacers are necessary.  These semi-floating rotors, with aluminum carrier and 5mm thick blade, improve ride, handling & and braking - not to mention the Bling Factor! Stock pads OK

.EBC 298mm front rotor only #BVLE38-6387.... $230.00

EBC 266mm rear rotor only #BVLE38-6367.... $225.00



XS Performance Rotor Kit w/ Sintered Pads-The Econo Upgrade Kit '77-'84



This lightweight XS Performance stainless steel rotor weighs only 3 lbs., 7 oz., and has a noticeable effect on handling. Combined with the Vesrah Sintered pads, a large increase in stopping power is available. Kit includes longer caliper mounting bolts, CNC spacers, Sintered pads, and the XS Performance semi-floating rotor, with steel carrier, 4mm thick blade, 11mm  master cylinder, w/ brake switch and SS lines w/ chrome banjo fittings for a complete kit with modern feel.

XS Performance rotor kit w/ line & MXS Master #BCEN20-1030..... $355.00

XS Performance rotor kit/pad  only #BCEN20-1032..... $195.00



Vintage Brake Rotor Kit w/ Organic Pads '73-'76

EBC rotor kit w/ line & MXS Master #BCEN20-2020..... $440.00

Add $55 for Brembo master cylinder

EBC rotor kit/Vesrah pads  only #BCEN20-2022..... $305.00

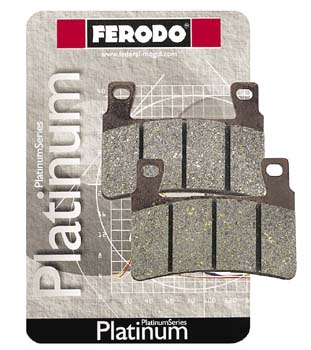

Ferodo Platinum Street Front/Rear Disc Pads

Fits Front on  77-84
Fits Rear on  78-79

Highest Co-efficient Of Friction of any road organic, best modulation.

Superior pads are the single best improvement for stock brakes! Suitable for track duty

FDB177P #BMCS45-4101 ..... $34.00

Front/Rear Street Disc Pads
Fits Front on  77-84
Fits Rear on  78-79

Vesrah Sintered pads offer increased initial bite, highest Co-efficient Of Friction, and long life, at the cost of slightly higher disc wear and more thermal loading on rotor and fluid,
typical of modern bikes.  Feel is good for a sintered. More potent than Platinums. The single biggest performance improvement for stock brakes.

"Iron back plate for Racing brake pad is used more strong material to make Katana (Japanese sword)"

Superior pads are the single best improvement for stock brakes! Suitable for track duty

 #BMAR20-5000..... $39.95



Marshall Front/Rear Disc Pads


Fits Front on  77-84
Fits Rear on  78-79

#BMAR62-2020..... $18.95



STAINLESS STEEL BRAKE LINES
1 or 2 piece, early or late--early should use stock solid line.

 Late single line starting at $48.85--Goodridge line w/ 2 chrome banjo fittings.

DOT also available.

CALL

CHROME BANJO BOLTS


10mm x 1.25  #BTKR03-5996...... $7.95

10mm x 1.00  #BTKR03-5998...... $7.95

Double 10mm x 1.25  #BTKR03-5997...... $9.95



BRAKE SWITCH BANJO BOLTS
10mm x 1.25, silver color

#HMCS51-01287...... $22.95

Rear Brake Light Switch

Fits all 650s, '70-84

#HMCS56-3272 ..... $7.95

Front Brake Light Switch



Fits '76-84.

 #HMXS12-0044..... $6.50



Brembo and Magura Master Cylinders
For improved hydraulic leverage ratios and that modern bike feel- MUST USE SS LINES

MikesXS from $81,  Brembo from $125 --- CALL

Brembo & Grimeca calipers available.....  CALL

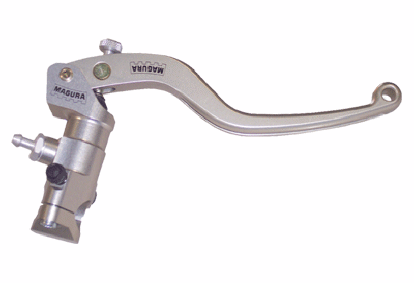

13mm Magura Radial Master Cylinder from $269

Early Caliper Brake Pads

Front Disc Pads

Vesrah Semi-Metallic Pads consists of Aramid Fiber, Metals, Abrasives, Lubricants, mixed with Phenol Resin.
Best initial bite and highest COF for '72-76. The BEST pad available for the early caliper ("T" tab)

#BMAR20-4000..... $32.00



SuperCycle Front Disc Pads

Fits front on '72-76. Key tab style, containing asbestos


#BMCS33-3615..... $11.00

Front Disc Pads
72-76.  Organic, "Black" compound ("T" tab)

 #BVLE38-0110 ....... $30.00



Brake Shoes


Rear Brake Shoes

Highest Co-Efficient of Friction of any road organic, best modulation.

The single best improvement for stock brakes! Suitable for track duty
All years

#BMCS45-4210..... $41.95 set


Rear Brake Shoes

All years

 #BMXS29-3211..... $16.50 set

XS1 Front Brake Shoes


Fits  '70-71 front 2 LS drum
. Made in Japan.

#BCEN25-1300..... $54.95 set

*******************************

Caliper & Master Cylinder Rebuild Parts

1972 thru 1976

Front Brake Master Cylinder Kit
Fits '72 thru '76 XS and other early round metal reservoir master cylinders

#BCEN80-0219 ..... $87.95

1977 thru 1984

Front Brake Master Cylinder Kit
Fits '77 thru 84 XS

#BMXS08-0219 ..... $25.50

Rear 650 Master Cylinder Kit
Fits '78 -79, with rear disc

#BKNL32-4031 ..... $32.00

Front OR Rear Brake Caliper Rebuild Kit
Piston seal replacement kit for front or rear calipers.
Fits '77-84 front and '78-79 rear.

 #BKNL32-1250..... $26.00


Front or Rear Disc Brake Caliper Piston

For front or rear '77-84

#BMXS29-0516 ..... $28.00 ea.

1972 thru 1976

Front Disc Brake Seal Kit
All the special seals and O-Rings you'll need to rebuild one front caliper.
Fits XS650's from '72-76

#BMXS29-0019 ..... $23.50

Front Disc Brake Caliper Piston
For front  '72-76. Caliper uses 2. Sold each.

#BMXS29-0518 ..... $22.00 each
